AT5 MOV Timing Belts / Open-Ended - M / move®-series

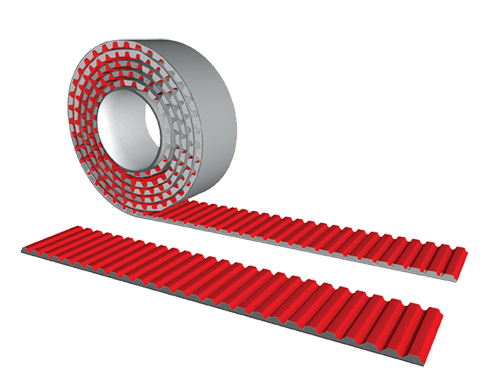

AT5 MOV is the newest pitch in our move®-series, ideal for applications that need smaller drives and exceptional strength. Utilizing our high-quality polyurethane, a wear-resistant laminate tooth coating, and steel tension members engineered for demanding applications, AT5 MOV is a durable, long-lasting solution. Use with stainless steel pulleys to maximize drive lifespan.

No items found.

AT5 MOV Timing Belts / Open-Ended - M / move®-series

See All Compatible Pulleys Here

Customize and Quote

View Product Resources

Order This Part

Key Product Features

Product Overview

Product Specifications

Pitch

AT5

Min Belt Length

Width

16, 25, 32,50 (mm)

Max width (mm)

Width B (mm)

Length L (mm)

In-between thickness (mm)

Machinable

Standard Thicknesses (mm)

Min Length mm

Material

Coeffecient of Friction

# of Teeth

Hardness

Temperature range

Max Length

Tolerance for total thickness (timing belt + coating)

Minimum Pulley Diameter per backing thickness (mm)

Pitch Circle Dia. (mm)

Outside Diameter dK (mm)

d - hole diameter (mm)

M - Width between holes (mm)

m - Hole CTC widthwise (mm)(mm)

a - Hole CTC Lenthwise (mm)

a1- Edge of Clamp to Hole Center (mm)(mm)

c - Hole spacing CTC (mm)

h - Clamp Base to top of tooth(mm)

H - Clamp Thickness (mm)

Tension Member

move High-strength steel

Face Width B (mm)

Options

Stock Lengths

Width Over Hub BN (mm)

# of Flanges

Hub Diameter dN / Hub Depth LN(mm)

Pilot Bore dV (mm)

Compatible Timing Belt (mm)

‍Tensile Force

Parameter	Symbol / Unit	16 mm	25 mm	32 mm	50 mm
Move tension member	FTadm [N]	2,744	4,116	5,488	8,232
Specific elasticity	Cspez [N]	0.546 × 10⁶	0.863 × 10⁶	1.092 × 10⁶	1.736 × 10⁶
Weight	[kg/m]	0.07	0.107	0.14	0.214

‍

Standard Lengths & Tooth Count

Standard Length (mm)	Tooth Count	Standard Length (mm)	Tooth Count
720	144	2000	400
780	156	2120	424
840	168	2240	448
855	171	2360	472
875	175	2500	500
900	180	2650	530
960	192	2800	560
990	198	3000	600
1005	201	3150	630
1020	204	3350	670
1075	215	3750	750
1100	220	4000	800
1215	243	4250	850
1380	276	4500	900
1400	280	4750	950
1500	300	5000	1000
1600	320	5300	1060
1700	340	5600	1120
1800	360	6000	1200
1900	380	6300	1260
		6700	1340
		7100	1420
		7500	1500
