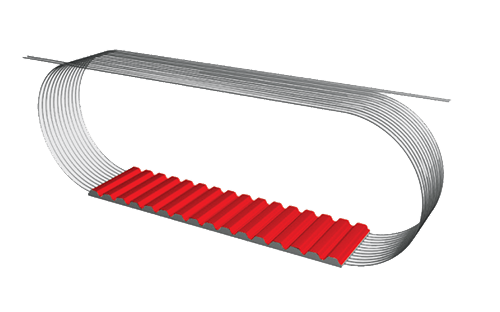

AT5 MOV Timing Belts / Truly-Endless - BFX / move®-series

AT5 MOV is the newest pitch in our move®-series, ideal for applications that need smaller drives and exceptional strength. Utilizing our high-quality polyurethane, a wear-resistant laminate tooth coating, and steel tension members engineered for demanding applications, AT5 MOV is a durable, long-lasting solution. Use with stainless steel pulleys to maximize drive lifespan.

No items found.

AT5 MOV Timing Belts / Truly-Endless - BFX / move®-series

See All Compatible Pulleys Here

Customize and Quote

View Product Resources

Order This Part

Key Product Features

Product Overview

Product Specifications

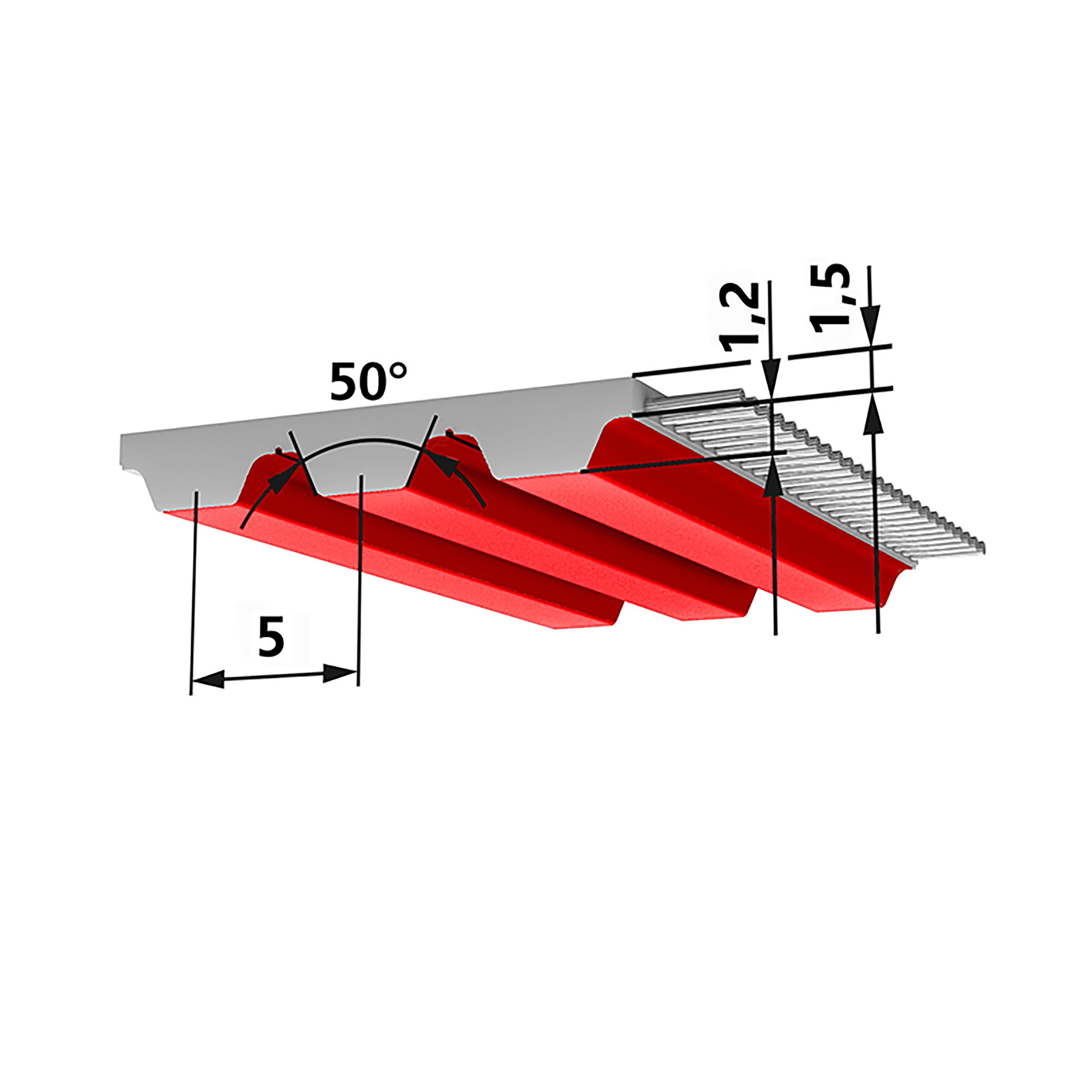

Pitch

AT5

Min Belt Length

Width

10, 16, 25, 32, 50, 75, 100 (mm)

Max width (mm)

Width B (mm)

Length L (mm)

In-between thickness (mm)

Machinable

Standard Thicknesses (mm)

Min Length mm

720

Material

TPU-ST1, Laminate tooth coating

Coeffecient of Friction

# of Teeth

Hardness

Temperature range

Max Length

Tolerance for total thickness (timing belt + coating)

Minimum Pulley Diameter per backing thickness (mm)

Pitch Circle Dia. (mm)

Outside Diameter dK (mm)

d - hole diameter (mm)

M - Width between holes (mm)

m - Hole CTC widthwise (mm)(mm)

a - Hole CTC Lenthwise (mm)

a1- Edge of Clamp to Hole Center (mm)(mm)

c - Hole spacing CTC (mm)

h - Clamp Base to top of tooth(mm)

H - Clamp Thickness (mm)

Tension Member

move High-strength steel

Face Width B (mm)

Options

Stock Lengths

Width Over Hub BN (mm)

# of Flanges

Hub Diameter dN / Hub Depth LN(mm)

Pilot Bore dV (mm)

Compatible Timing Belt (mm)

Tensile Force

Parameter	Symbol / Unit	10 mm	16 mm	25 mm	32 mm	50 mm	75 mm	100 mm
move tension member	FTadm [N]	1,176	2,352	3,724	4,702	7,448	11,172	14,896
Weight	[kg/m]	0.04	0.064	0.1	0.128	0.2	0.3	0.4
